我們?cè)谠O(shè)計表格樣式的時候,很多時候會把表格設計成圓角,這樣看起來會更加美觀。本文介紹兩個圓角表格實例,為了使表格更加實用,其中一個使用hover懸停高亮行效果,另一個則使用斑馬條紋行效果。

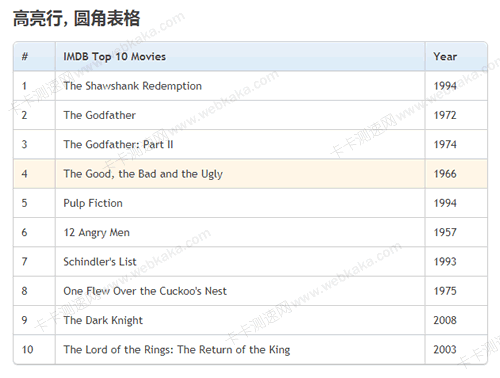

具有懸停高亮行效果的圓角表格
完整HTML代碼
<!DOCTYPE html>
<html>
<head>
<title>Practical CSS3 tables with rounded corners - demo</title>
<style>
body {
width: 600px;
margin: 40px auto;
font-family: 'trebuchet MS', 'Lucida sans', Arial;
font-size: 14px;
color: #444;
}
table {
*border-collapse: collapse;
/* IE7 and lower */
border-spacing: 0;
width: 100%;
}
.bordered {
border: solid #ccc 1px;
-moz-border-radius: 6px;
-webkit-border-radius: 6px;
border-radius: 6px;
-webkit-box-shadow: 0 1px 1px #ccc;
-moz-box-shadow: 0 1px 1px #ccc;
box-shadow: 0 1px 1px #ccc;
}
.bordered tr:hover {
background: #fbf8e9;
-o-transition: all 0.1s ease-in-out;
-webkit-transition: all 0.1s ease-in-out;
-moz-transition: all 0.1s ease-in-out;
-ms-transition: all 0.1s ease-in-out;
transition: all 0.1s ease-in-out;
}
.bordered td,
.bordered th {
border-left: 1px solid #ccc;
border-top: 1px solid #ccc;
padding: 10px;
text-align: left;
}
.bordered th {
background-color: #dce9f9;
background-image: -webkit-gradient(linear, left top, left bottom, from(#ebf3fc), to(#dce9f9));
background-image: -webkit-linear-gradient(top, #ebf3fc, #dce9f9);
background-image: -moz-linear-gradient(top, #ebf3fc, #dce9f9);
background-image: -ms-linear-gradient(top, #ebf3fc, #dce9f9);
background-image: -o-linear-gradient(top, #ebf3fc, #dce9f9);
background-image: linear-gradient(top, #ebf3fc, #dce9f9);
-webkit-box-shadow: 0 1px 0 rgba(255, 255, 255, .8) inset;
-moz-box-shadow: 0 1px 0 rgba(255, 255, 255, .8) inset;
box-shadow: 0 1px 0 rgba(255, 255, 255, .8) inset;
border-top: none;
text-shadow: 0 1px 0 rgba(255, 255, 255, .5);
}
.bordered td:first-child,
.bordered th:first-child {
border-left: none;
}
.bordered th:first-child {
-moz-border-radius: 6px 0 0 0;
-webkit-border-radius: 6px 0 0 0;
border-radius: 6px 0 0 0;
}
.bordered th:last-child {
-moz-border-radius: 0 6px 0 0;
-webkit-border-radius: 0 6px 0 0;
border-radius: 0 6px 0 0;
}
.bordered th:only-child {
-moz-border-radius: 6px 6px 0 0;
-webkit-border-radius: 6px 6px 0 0;
border-radius: 6px 6px 0 0;
}
.bordered tr:last-child td:first-child {
-moz-border-radius: 0 0 0 6px;
-webkit-border-radius: 0 0 0 6px;
border-radius: 0 0 0 6px;
}
.bordered tr:last-child td:last-child {
-moz-border-radius: 0 0 6px 0;
-webkit-border-radius: 0 0 6px 0;
border-radius: 0 0 6px 0;
}
</style>
</head>
<body>
<h2>高亮行, 圓角表格</h2>
<table class="bordered">
<thead>
<tr>
<th>#</th>
<th>IMDB Top 10 Movies</th>
<th>Year</th>
</tr>
</thead>
<tr>
<td>1</td>
<td>The Shawshank Redemption</td>
<td>1994</td>
</tr>
<tr>
<td>2</td>
<td>The Godfather</td>
<td>1972</td>
</tr>
<tr>
<td>3</td>
<td>The Godfather: Part II</td>
<td>1974</td>
</tr>
<tr>
<td>4</td>
<td>The Good, the Bad and the Ugly</td>
<td>1966</td>
</tr>
<tr>
<td>5</td>
<td>Pulp Fiction</td>
<td>1994</td>
</tr>
<tr>
<td>6</td>
<td>12 Angry Men</td>
<td>1957</td>
</tr>
<tr>
<td>7</td>
<td>Schindler's List</td>
<td>1993</td>
</tr>
<tr>
<td>8</td>
<td>One Flew Over the Cuckoo's Nest</td>
<td>1975</td>
</tr>
<tr>
<td>9</td>
<td>The Dark Knight</td>
<td>2008</td>
</tr>
<tr>
<td>10</td>
<td>The Lord of the Rings: The Return of the King</td>
<td>2003</td>
</tr>
</table>
</body>
</html>
代碼分析
1、下面3個地方設置表頭圓角的大小,這里是6px。
.bordered th:first-child { /* 左上角圓角大小 */
-moz-border-radius: 6px 0 0 0;
-webkit-border-radius: 6px 0 0 0;
border-radius: 6px 0 0 0;
}
.bordered th:last-child { /* 右上角圓角大小 */
-moz-border-radius: 0 6px 0 0;
-webkit-border-radius: 0 6px 0 0;
border-radius: 0 6px 0 0;
}
.bordered th:only-child{
-moz-border-radius: 6px 6px 0 0;
-webkit-border-radius: 6px 6px 0 0;
border-radius: 6px 6px 0 0;
}
2、下面兩個地方設置表格底邊的圓角大小,這里是6px。
.bordered tr:last-child td:first-child {/* 左小角圓角大小 */
-moz-border-radius: 0 0 0 6px;
-webkit-border-radius: 0 0 0 6px;
border-radius: 0 0 0 6px;
}
.bordered tr:last-child td:last-child {/* 右下角圓角大小 */
-moz-border-radius: 0 0 6px 0;
-webkit-border-radius: 0 0 6px 0;
border-radius: 0 0 6px 0;
}
3、下面代碼設置懸停高亮行顏色,transition
是過度動畫,這里設置為0.1s。
.bordered tr:hover {
background: #fbf8e9; /* 懸停高亮行顏色 */
-o-transition: all 0.1s ease-in-out;
-webkit-transition: all 0.1s ease-in-out;
-moz-transition: all 0.1s ease-in-out;
-ms-transition: all 0.1s ease-in-out;
transition: all 0.1s ease-in-out;
}

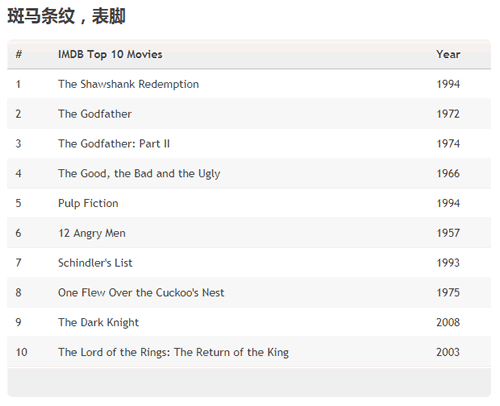

具有斑馬條紋行的圓角表格
完整HTML代碼
<!DOCTYPE html>
<html>
<head>
<title>Practical CSS3 tables with rounded corners - demo</title>
<style>
body {
width: 600px;
margin: 40px auto;
font-family: 'trebuchet MS', 'Lucida sans', Arial;
font-size: 14px;
color: #444;
}
table {
*border-collapse: collapse;
/* IE7 and lower */
border-spacing: 0;
width: 100%;
}
.zebra td,
.zebra th {
padding: 10px;
border-bottom: 1px solid #f2f2f2;
}
.zebra tbody tr:nth-child(even) {
background: #f5f5f5;
-webkit-box-shadow: 0 1px 0 rgba(255, 255, 255, .8) inset;
-moz-box-shadow: 0 1px 0 rgba(255, 255, 255, .8) inset;
box-shadow: 0 1px 0 rgba(255, 255, 255, .8) inset;
}
.zebra th {
text-align: left;
text-shadow: 0 1px 0 rgba(255, 255, 255, .5);
border-bottom: 1px solid #ccc;
background-color: #eee;
background-image: -webkit-gradient(linear, left top, left bottom, from(#f5f5f5), to(#eee));
background-image: -webkit-linear-gradient(top, #f5f5f5, #eee);
background-image: -moz-linear-gradient(top, #f5f5f5, #eee);
background-image: -ms-linear-gradient(top, #f5f5f5, #eee);
background-image: -o-linear-gradient(top, #f5f5f5, #eee);
background-image: linear-gradient(top, #f5f5f5, #eee);
}
.zebra th:first-child {
-moz-border-radius: 6px 0 0 0;
-webkit-border-radius: 6px 0 0 0;
border-radius: 6px 0 0 0;
}
.zebra th:last-child {
-moz-border-radius: 0 6px 0 0;
-webkit-border-radius: 0 6px 0 0;
border-radius: 0 6px 0 0;
}
.zebra th:only-child {
-moz-border-radius: 6px 6px 0 0;
-webkit-border-radius: 6px 6px 0 0;
border-radius: 6px 6px 0 0;
}
.zebra tfoot td {
border-bottom: 0;
border-top: 1px solid #fff;
background-color: #f1f1f1;
}
.zebra tfoot td:first-child {
-moz-border-radius: 0 0 0 6px;
-webkit-border-radius: 0 0 0 6px;
border-radius: 0 0 0 6px;
}
.zebra tfoot td:last-child {
-moz-border-radius: 0 0 6px 0;
-webkit-border-radius: 0 0 6px 0;
border-radius: 0 0 6px 0;
}
.zebra tfoot td:only-child {
-moz-border-radius: 0 0 6px 6px;
-webkit-border-radius: 0 0 6px 6px border-radius: 0 0 6px 6px
}
</style>
</head>
<body>
<h2>斑馬條紋,表腳</h2>
<table class="zebra">
<thead>
<tr>
<th>#</th>
<th>IMDB Top 10 Movies</th>
<th>Year</th>
</tr>
</thead>
<tfoot>
<tr>
<td> </td>
<td></td>
<td></td>
</tr>
</tfoot>
<tr>
<td>1</td>
<td>The Shawshank Redemption</td>
<td>1994</td>
</tr>
<tr>
<td>2</td>
<td>The Godfather</td>
<td>1972</td>
</tr>
<tr>
<td>3</td>
<td>The Godfather: Part II</td>
<td>1974</td>
</tr>
<tr>
<td>4</td>
<td>The Good, the Bad and the Ugly</td>
<td>1966</td>
</tr>
<tr>
<td>5</td>
<td>Pulp Fiction</td>
<td>1994</td>
</tr>
<tr>
<td>6</td>
<td>12 Angry Men</td>
<td>1957</td>
</tr>
<tr>
<td>7</td>
<td>Schindler's List</td>
<td>1993</td>
</tr>
<tr>
<td>8</td>
<td>One Flew Over the Cuckoo's Nest</td>
<td>1975</td>
</tr>
<tr>
<td>9</td>
<td>The Dark Knight</td>
<td>2008</td>
</tr>
<tr>
<td>10</td>
<td>The Lord of the Rings: The Return of the King</td>
<td>2003</td>
</tr>
</table>
</body>
</html>
代碼分析
1、下面代碼設置表格圓角大小, 這里是6px
.zebra th:first-child {
-moz-border-radius: 6px 0 0 0;
-webkit-border-radius: 6px 0 0 0;
border-radius: 6px 0 0 0;
}
.zebra th:last-child {
-moz-border-radius: 0 6px 0 0;
-webkit-border-radius: 0 6px 0 0;
border-radius: 0 6px 0 0;
}
.zebra th:only-child{
-moz-border-radius: 6px 6px 0 0;
-webkit-border-radius: 6px 6px 0 0;
border-radius: 6px 6px 0 0;
}
2、下面代碼設置表腳圓角大小,這里是6px。
.zebra tfoot td:first-child {
-moz-border-radius: 0 0 0 6px;
-webkit-border-radius: 0 0 0 6px;
border-radius: 0 0 0 6px;
}
.zebra tfoot td:last-child {
-moz-border-radius: 0 0 6px 0;
-webkit-border-radius: 0 0 6px 0;
border-radius: 0 0 6px 0;
}
.zebra tfoot td:only-child{
-moz-border-radius: 0 0 6px 6px;
-webkit-border-radius: 0 0 6px 6px
border-radius: 0 0 6px 6px
}
3、下面代碼設置斑馬條紋顏色,這里是#f5f5f5
。
.zebra tbody tr:nth-child(even) {
background: #f5f5f5; /* 斑馬條紋顏色 */
-webkit-box-shadow: 0 1px 0 rgba(255,255,255,.8) inset;
-moz-box-shadow:0 1px 0 rgba(255,255,255,.8) inset;
box-shadow: 0 1px 0 rgba(255,255,255,.8) inset;
}
